Bar Chart

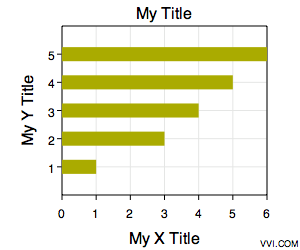

This section explains how to form a dictionary for a bar chart such as these:

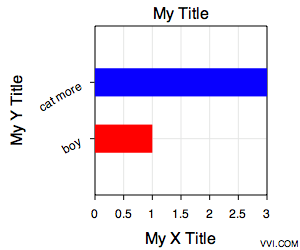

Overridden Color	Labels With Color Map

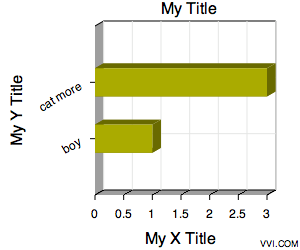

Second Format Type	Extruded

A bar chart is a sequence rectangles (bars) whose width is determined by scalar data values. The y-axis numeric values are typically reassigned to text that identifies the bar with a name identifier. Bars can be stacked or offset. By default, a bar chart has x-ticks but those can be turned off on the associated template. The template can also be adjusted to give gradient bars and many other graphical attributes.

An example code fragment illustration follows:


/* Start of Illustration Code Fragment */



[constructor VC_append_key:"chart_type" string_value:@"bar"];

[constructor VC_append_key:"chart_subtype" string_value:@"default"];

[constructor VC_append_key:"chart_format_type" string_value:@"default"];

[constructor VC_append_key:"title" string_value:@"My Title"];

[constructor VC_append_key:"x_title" string_value:@"My X Title"];

[constructor VC_append_key:"y_title" string_value:@"My Y Title"];

[constructor VC_append_key:"data_values" string_value:@"1 2 3 4 5"];

[constructor VC_append_key:"fill_color" string_value:@"0000FF"];



/* End of Illustration Code Fragment */

The code fragment above can be inserted into the illustration code section of the Illustration project for an immediate running Cocoa application. For additional information consult the Illustration section.

The following table defines the dictionary key and value pairs:

Chart Specific Entries
Key	Value Description
chart_type¹	The chart type is the string bar, indicating a bar chart.
chart_subtype¹	The chart subtype is always the string default
chart_format_type¹	One of the strings {default , alternate, extruded} which produces the varied results of the figures above.
title	The main title of the graph. If this key is not present then the template's title is used.
x_title	The x title of the graph. If this key is not present then the template's x-title is used.
y_title	The y title of the graph. If this key is not present then the template's y-title is used.
data_values	A white space delimited list of values representing the length of the bar. See Data Oriented keys for additional information and keys.
label_I	A string for the I-th label value. I starts at 1.
bar_half_width	A number from 0.0 to 0.5 indicating the half width of the bar. If 0 then the bars have no width and if 0.5 then the bars touch adjacent bars. The default is 0.25.
does_stack_bars	If 0 then bars are offset, if 1 then bars are stacked. This only makes sense for group bars when the data_I key is used.
fill_color	A hex encoded representation of a RGBA color value. This only is in effect for format type 1. If this key is not present then the color table template is used.
fill_color_I	A hex encoded representation of a RGBA color value for the I-th bar. I starts at 1 (example: fill_color_2=FF0000 assigns the 2nd bar to a red fill color). This entry overrides the fill_color and the table color specifications.
templates	A custom Templates directory.

¹ Do not include this key value pair in the Interface Builder Plugin Inspector input string. It is included for you automatically.

If you incorporate this functionality into your own application then please consult Cocoa Programming. If you incorporate this functionality into CLI scripts then please consult Script Programming.

You can also modify the following Templates:

Template Document Names
Template	Description
PVST_Bar_Chart	Forms the static attributes for this chart type when there are no label keys.
PVST_Custom_Label_Bar_Chart	Forms the static attributes for this chart type when there is at least one label key. The left margin is greater to accommodate longer labels.
PVST_bar_color_table	Forms the bar color attributes for odd format type indices.
PVST_bar_color_table_1	Forms the bar color attributes for even format type indices.

Other examples

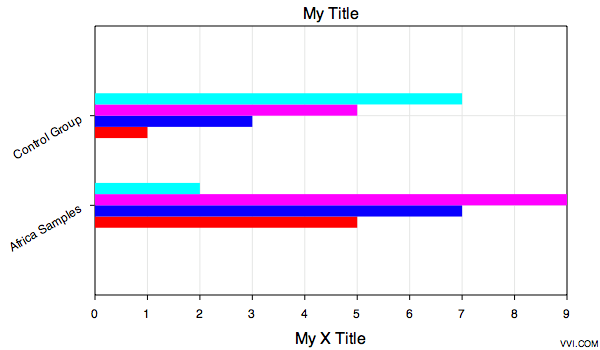

Group bars can be formed by using the data_I keys instead of the data_values key. Here is an example:
